RUPT Ultra-Pure Water System
Compact laboratory water purification for RO water and 18.2 MΩ·cm ultrapure water. Designed with RO, DI, UV, UF, online water quality monitoring, LCD control, and dual RO/UP water outlets for daily laboratory use.

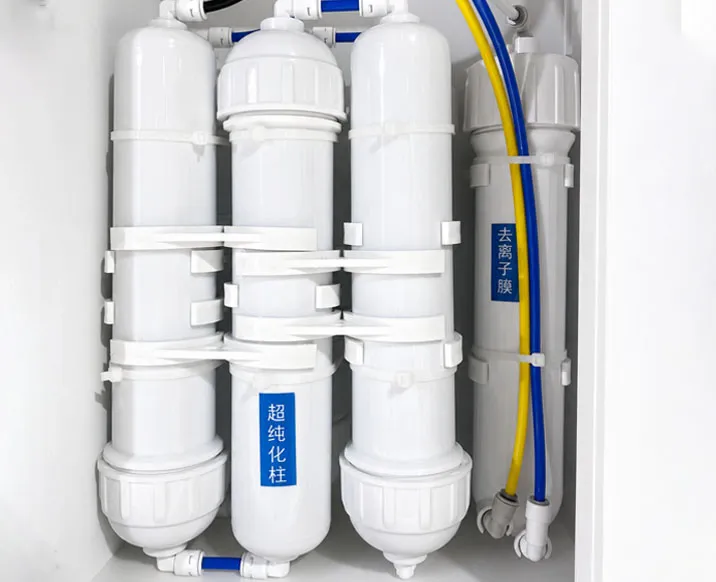

RUPT Ultra-Pure Water System
Product Overview
The RUPT Ultra-Pure Water System is a compact laboratory ultra pure water purification system designed to produce RO water and UP ultrapure water from municipal tap water. It integrates pretreatment, activated carbon adsorption, reverse osmosis, ion exchange, UV oxidation, ultrafiltration, final polishing, online monitoring, and automatic control in one laboratory water unit.
This RUPT laboratory ultrapure water system is suitable for universities, research institutes, medical laboratories, industrial laboratories, and quality control departments that need stable purified water for routine experiments and high-purity laboratory applications.

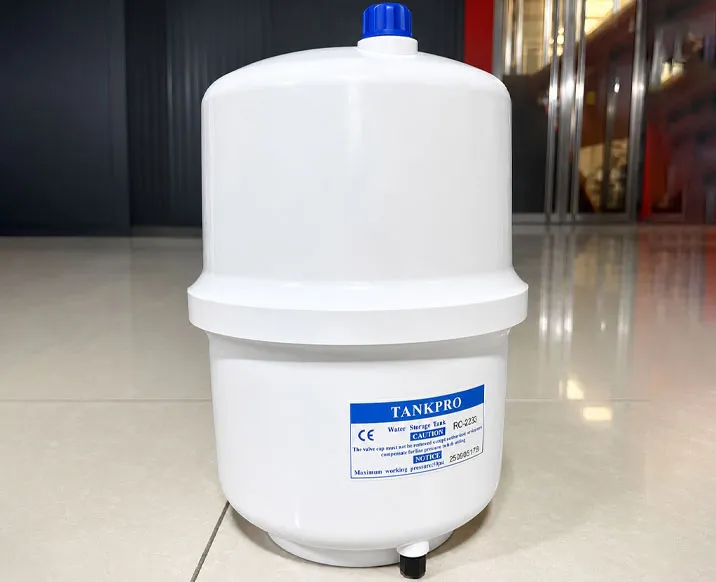

The system supports dual water quality dispensing, automatic RO membrane flushing, real-time water quality monitoring, consumable life reminders, password-protected settings, timed dispensing, and optional storage tank configurations. A 3.2-gallon tank can be supplied together with RUPT 10L–20L configurations according to the provided product note.
Get a Quote
Get a Quote
RUPT Ultra-Pure Water System application areas
Product Specifications
| Technical Point | Provided Specification / Configuration | Buyer Benefit |
| Product Type | Laboratory ultra-pure water system | Designed for laboratory RO water and UP ultrapure water preparation |
| Water Source | Municipal tap water, TDS < 200 ppm, 5–45°C, 1.0–4.0 kgf/cm² | Suitable for standard laboratory tap water pretreatment conditions |
| System Process | PF + KDF + AC + RO + AC/UV + DI + UF + TF, depending on model | Allows different configurations for basic, pyrogen-removal, low-organic, and comprehensive applications |
| UP Water Resistivity | 18.2 MΩ·cm @ 25°C | Supports high-purity laboratory water requirements |
| Production Capacity | 10 L/h for RUPT-10 | Suitable for small and medium laboratory daily water demand |
| Instant Dispensing Flow | 2.0 L/min with pressure tank; UF models may have lower flow | Supports convenient water dispensing for daily lab use |
| Water Outlets | 2 touch-button outlets: RO water and UP ultrapure water | One system provides two water qualities for different lab tasks |
| Dimensions and Weight | 50 × 45 × 50 cm; about 40 kg including pressure tank | Compact size for laboratory bench or cabinet-side installation |
Detailed Product Description
Laboratory RO + UP Ultrapure Water Process

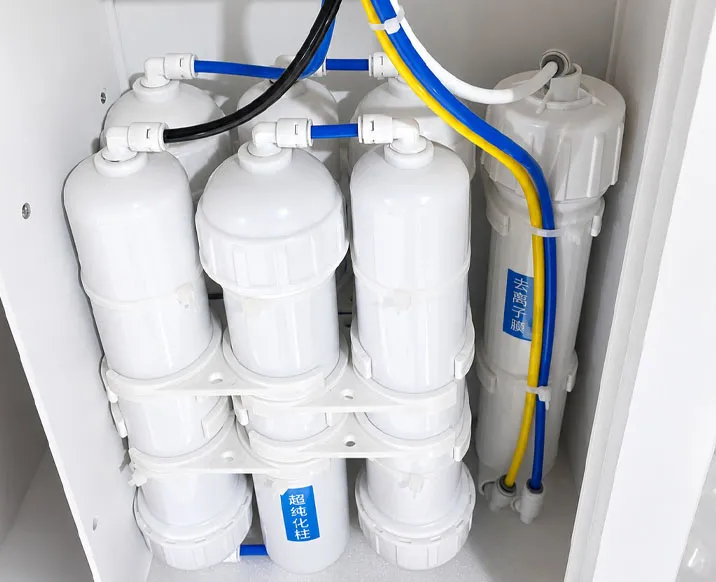

The RUPT ultra pure water purification system uses municipal tap water as the feed water source. The process combines PF, KDF, activated carbon, RO, DI, UV, UF, and final polishing technologies according to the selected model configuration.

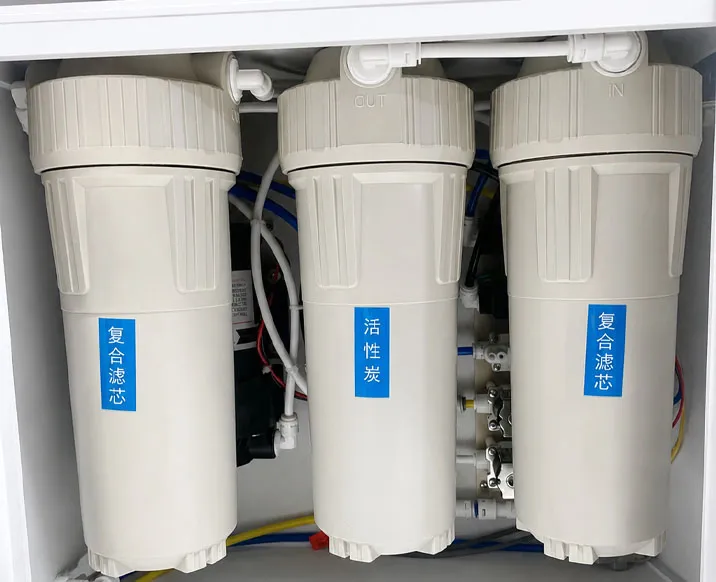

Pretreatment helps remove particles, residual chlorine, odor, and common impurities before RO purification. The RO membrane then removes ions, organics, particles, microorganisms, and bacteria. The DI and final polishing stages further improve water purity to produce UP ultrapure water for laboratory use.
Different RUPT configurations are available, including basic type, pyrogen-removal type, low-organic type, and comprehensive type. Buyers can select the suitable model based on target water quality, application sensitivity, TOC requirements, and whether UF or UV treatment is required.
Smart Control and Dual Water Quality Output

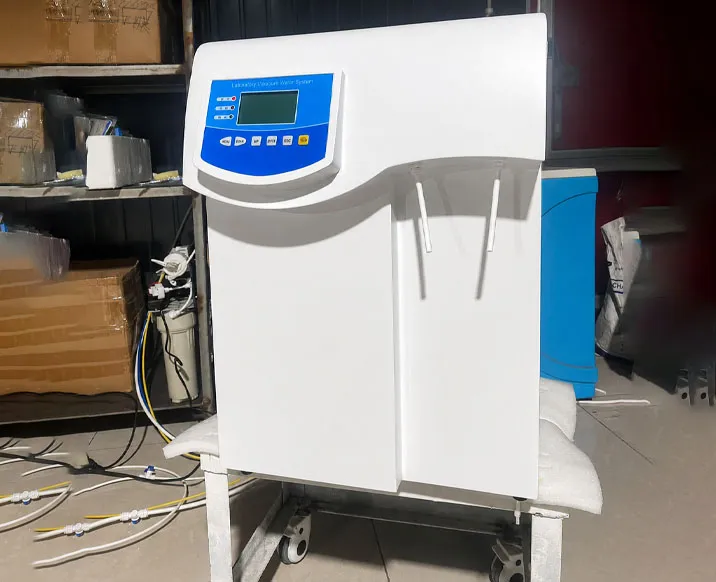

The system uses a microcomputer control platform with a large LCD display. It can show ultrapure water quality, water temperature, dispensing status, date, TOC information, system status, flushing status, and alarm information.
Two online water quality monitoring channels are provided for RO water and ultrapure water, with an optional three-channel monitoring configuration. The system also supports timed dispensing, consumable life management, historical alarm records, water dispensing records, automatic memory after power-off, and password-protected settings.
Frequently Asked Questions
Technical Q&A & Application Guidelines
-
What is the main use of the RUPT Ultra-Pure Water System?
The RUPT Ultra-Pure Water System is used to produce RO water and UP ultrapure water from municipal tap water for laboratory applications. It is suitable for universities, research institutes, medical laboratories, industrial laboratories, and quality control departments.
-
What feed water conditions are required?
The provided feed water requirement is municipal tap water with TDS <200 ppm, temperature 5–45℃, and pressure 1.0–4.0 Kgf/cm². If feed water TDS is higher than 200 ppm, an external softener is recommended.
-
What water quality can the system produce?
The UP ultrapure water resistivity can reach 18.2 MΩ·cm @25℃. Other indicators such as TOC, bacteria, endotoxin, RNases, DNases, and particles depend on the selected RUPT configuration.
-
What is the difference between RUPT, RUPT-I, RUPT-II, and RUPT-III?
RUPT is the basic type. RUPT-I is designed for pyrogen removal, RUPT-II is designed for low-organic applications, and RUPT-III is a comprehensive configuration. The process may include different combinations of RO, UV, DI, UF, and final polishing.
-
Does the system provide both RO water and ultrapure water?
Yes. The system has two touch-button outlets: one for RO reverse osmosis water and one for UP ultrapure water. This allows one unit to support two laboratory water quality needs.
