RUPL-100 Ultra-Pure Water System
100L/H laboratory water purification for purified water and UP ultrapure water. Designed with RO purification, ion exchange, online water quality monitoring, dual water outlets, automatic flushing, and a matched 20G RO water storage tank.

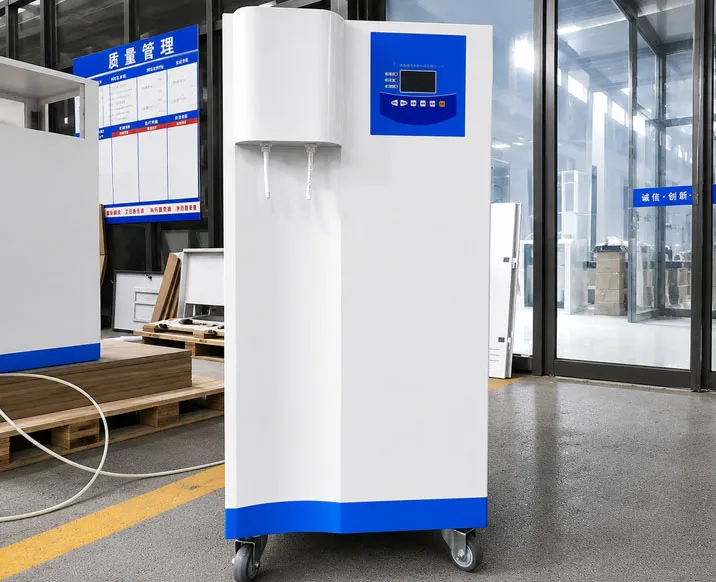

RUPL-100 Ultra-Pure Water System
Product Overview

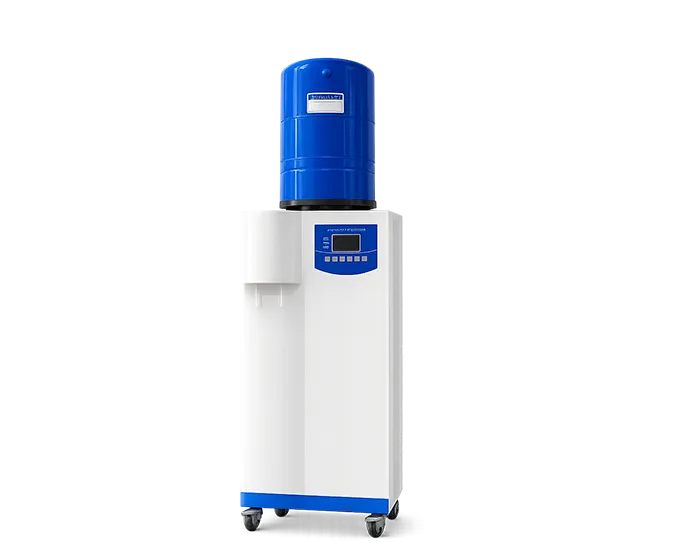

The RUPL-100 Ultra-Pure Water System is a 100L/H laboratory ultra pure water purification system designed to produce purified water and UP ultrapure water from municipal tap water. It integrates pretreatment, reverse osmosis, ion exchange, optional UV oxidation, optional ultrafiltration, final polishing, online water quality monitoring, and automatic control in one floor-standing laboratory unit.
This system is suitable for universities, research institutes, medical laboratories, industrial laboratories, and QC departments that need a higher water production capacity than small benchtop lab water units. It supports two water outputs—purified water and UP ultrapure water—so one system can serve different laboratory water requirements.

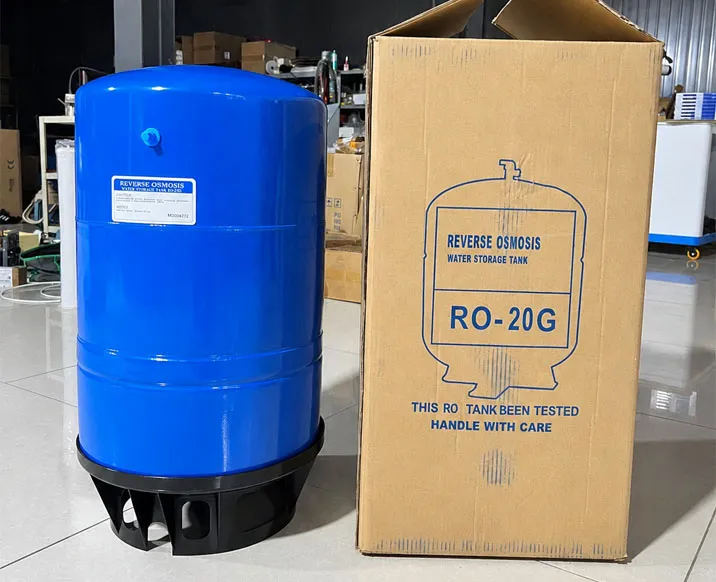

The RUPL-100 can be supplied with a 20G RO water storage tank according to the provided product configuration. With automatic flushing, low-pressure protection, full-tank shutdown, real-time water quality monitoring, and easy cartridge replacement, it is designed for stable daily laboratory water production and convenient maintenance.
Get a Quote
Get a Quote
RUPL-100 Ultra-Pure Water System application areas
Product Specifications
| Technical Point | Provided Specification / Configuration | Buyer Benefit |
| Product Model | RUPL-100 Ultra-Pure Water System | Specific 100 L/h floor-standing laboratory ultrapure water unit |
| Water Production Capacity | 100 L/h at 25°C | Suitable for laboratories with higher daily purified water demand |
| Feed Water Requirement | Municipal tap water, TDS < 200 ppm, 5–45°C, 1.0–4.0 kgf/cm² | Supports standard laboratory tap water as the source water |
| UP Water Resistivity | 18.25 MΩ·cm @ 25°C | Provides high-purity ultrapure water for laboratory applications |
| Water Outlets | 2 touch-button outlets: purified water and UP ultrapure water | One system supplies two water qualities for different lab tasks |
| Instant Dispensing Flow | 1.5 L/min | Supports convenient daily water dispensing |
| Dimensions | 500 × 530 × 1050 mm | Floor-standing structure suitable for laboratory installation |
| Power | 220V, 50Hz / 280W | Clear electrical requirement for project planning |
Detailed Product Description
100L/H Laboratory Ultra Pure Water Purification System

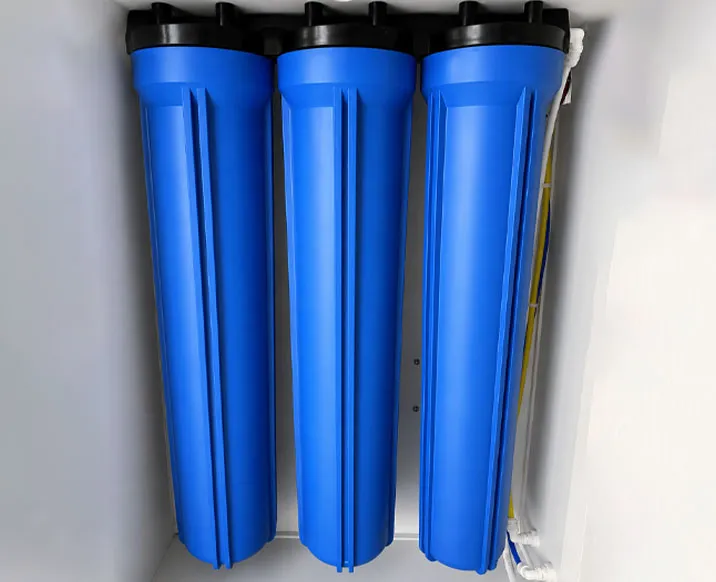

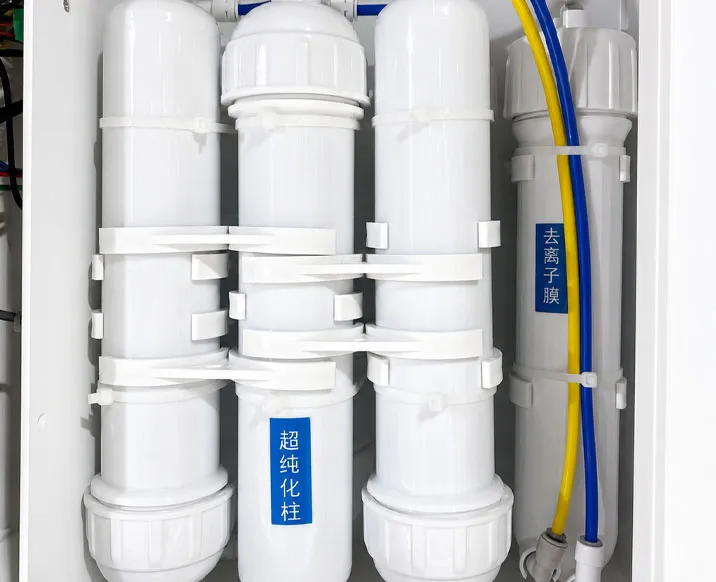

The RUPL-100 ultra pure water purification system uses municipal tap water as the feed water source. Its standard process includes PP filtration, carbon filtration, RO reverse osmosis, purification cartridge treatment, and final polishing. Depending on the selected configuration, UV oxidation, ultrafiltration, and terminal filtration can also be included.

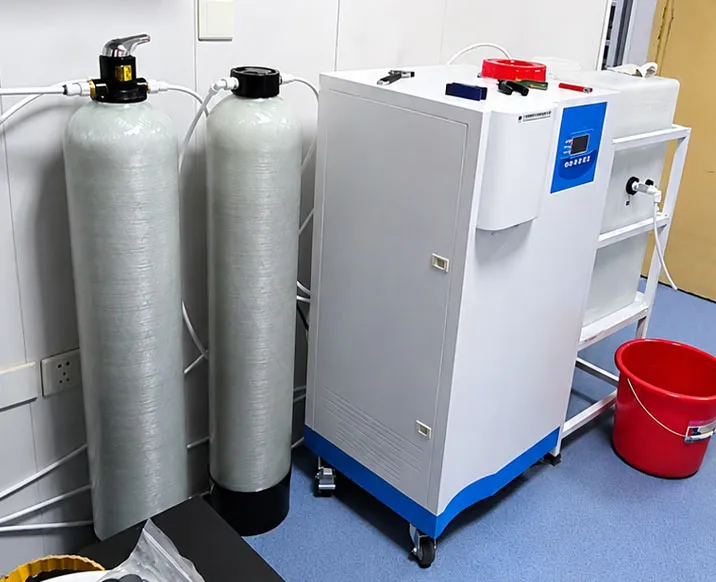

The system removes common impurities such as ions, pyrogens, organic matter, particles, microorganisms, and bacteria to produce purified water and UP ultrapure water for laboratory use. For feed water with higher TDS, an external softener is recommended before the system.
Smart Control and Water Quality Monitoring
The RUPL series is designed with automatic operation and real-time system status display. It supports automatic backwashing at startup, low-pressure alarm and shutdown protection, full-tank automatic shutdown, and automatic RO membrane anti-scaling flushing.
The system monitors two water quality points online, including RO purified water and UP ultrapure water. It also displays operating status such as power, water shortage, full tank, purified water dispensing, ultrapure water dispensing, and flushing.
Frequently Asked Questions
Technical Q&A & Application Guidelines
-
What is the main use of the RUPL-100 Ultra-Pure Water System?
The RUPL-100 Ultra-Pure Water System is used to produce purified water and UP ultrapure water from municipal tap water. It is suitable for universities, research institutes, medical laboratories, industrial laboratories, and QC departments.
-
What is the production capacity of the RUPL-100?
The RUPL-100 has a provided water production capacity of 100L/H at 25℃. It is suitable for laboratories that require a larger water output than small desktop ultra pure water systems.
-
What feed water conditions are required?
The provided feed water requirement is municipal tap water with TDS <200 ppm, temperature 5–45℃, and pressure 1.0–4.0 Kgf/cm². If feed water TDS is higher than 300 ppm, an external softener is recommended.
-
What water quality can the system produce?
The UP ultrapure water resistivity can reach 18.25 MΩ·cm @25℃. Other parameters, including TOC, endotoxin, RNases, DNases, and ultrafiltration performance, depend on the selected RUPL configuration.
-
Does the system include a 20G RO water storage tank?
The provided product note states that a 20G RO water storage tank is matched with the RUPL-100 system. Final tank type and configuration should be confirmed before order placement.
